Jacket BCD vs. Backplate & Wing: What's the Difference and Which is Right for You?

HERODIVER

The Bottom Line: A jacket BCD is the "classic" design where the air bladder wraps around the diver's sides and chest—intuitive and comfortable for beginners, which is why it is the standard rental in most dive centers.

A backplate & wing system consists of a rigid backplate, a continuous harness, and a rear-mounted buoyancy cell (wing), resembling a turtle shell. It is fully modular, provides superior horizontal trim, greater freedom of movement, and versatile weight distribution. For advanced, technical, and traveling divers seeking a precise custom fit—a backplate & wing is almost always the better long-term investment.

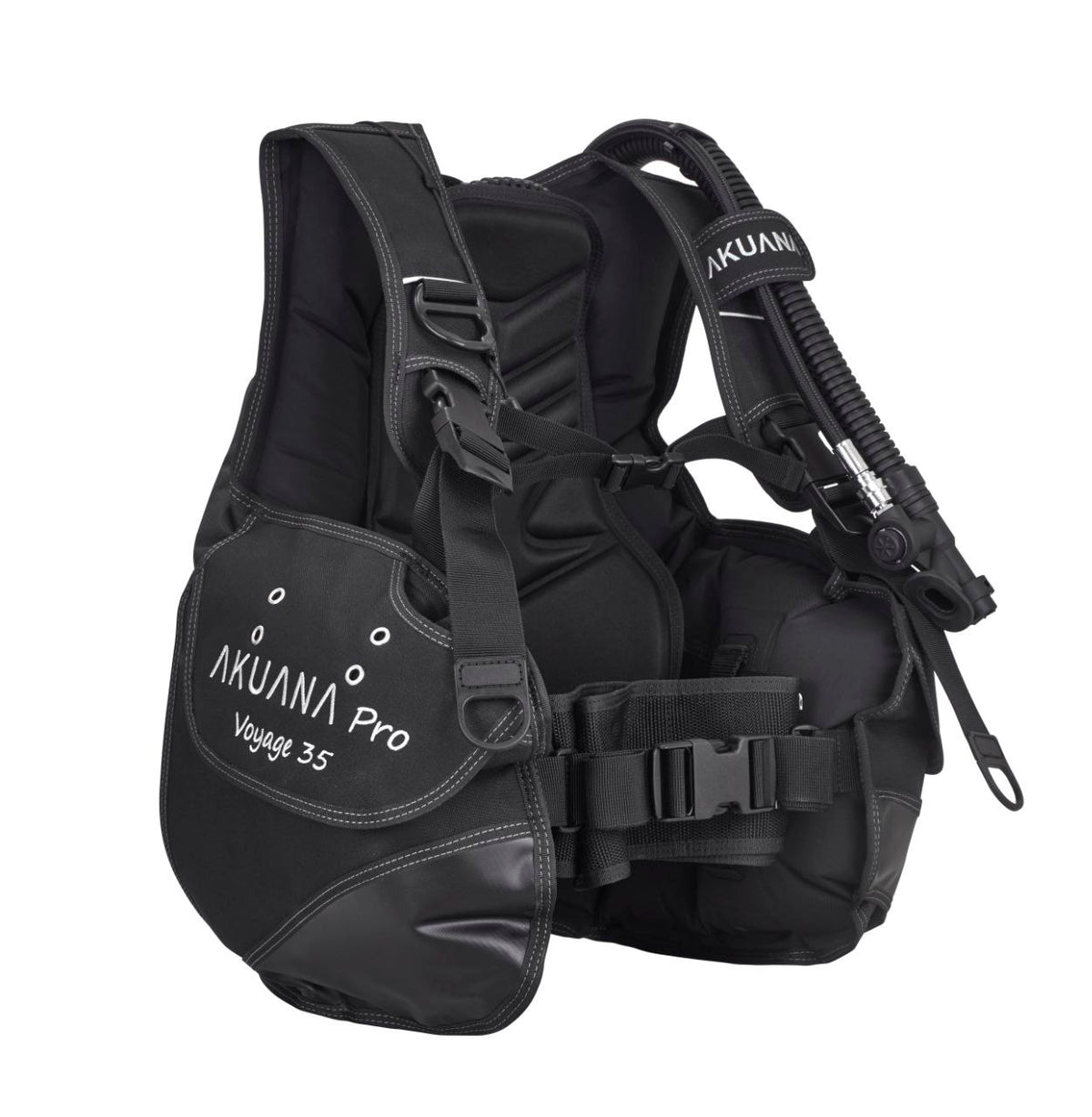

AKUANA Pro Voyage 35 Jacket BCD

What is a Jacket BCD?

The BCD (Buoyancy Control Device) is the heart of your dive system: it controls your buoyancy, holds the cylinder, and lets you hover weightlessly with minimal effort—yet not all BCDs are built the same.

A jacket BCD is the most common type in dive shops and entry courses. The buoyancy bladder extends around your back and torso like a vest. When inflated, the air expands around your ribcage and sides.

  • Jacket BCD Advantages:

    • Intuitive and comfortable for beginners.
    • Lower initial purchase price on standard models.
    • Widely available for rental and trials in almost any dive center.

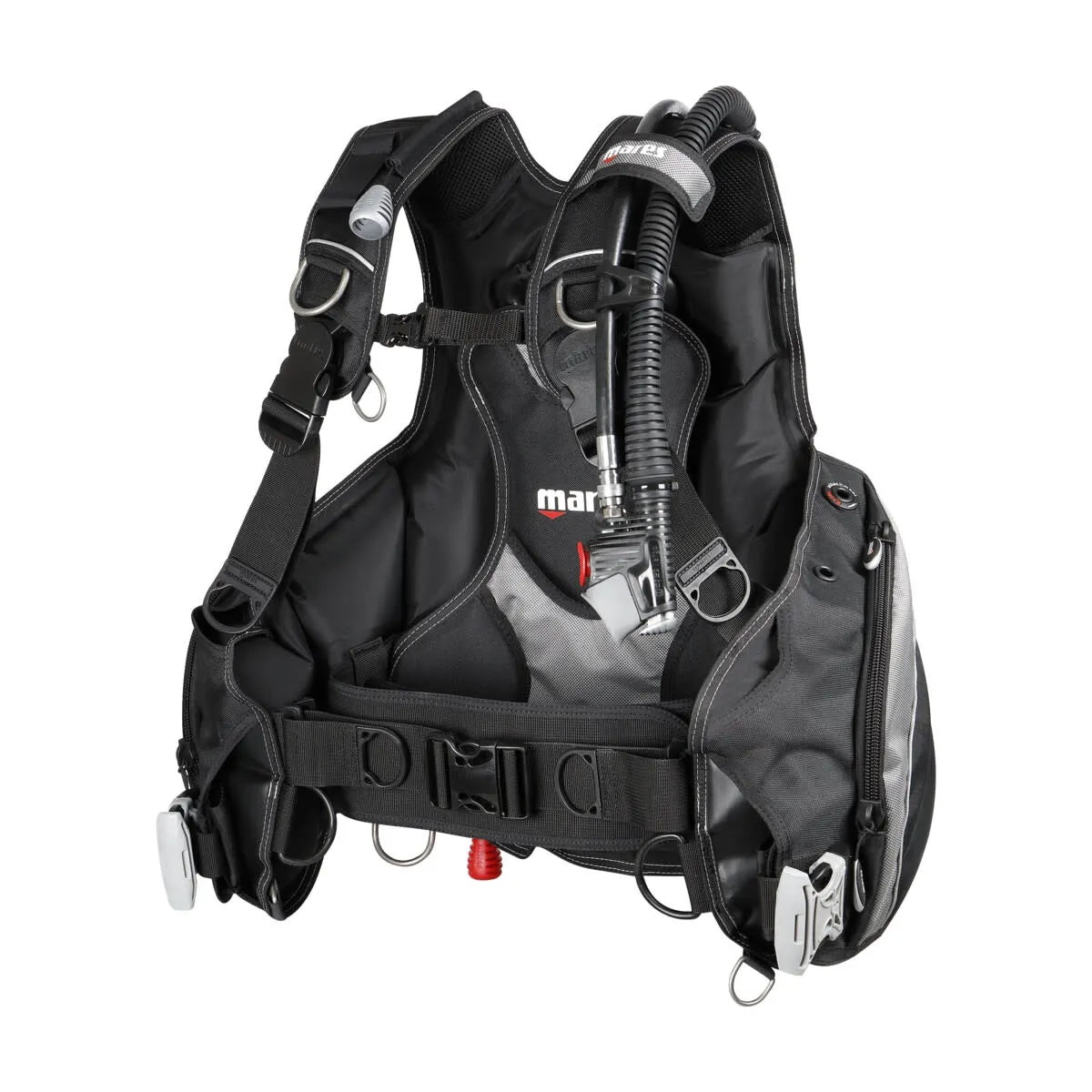

  • Mares Prestige SLS Jacket BCD

  • Jacket BCD Disadvantages:

    • Tends to push the diver upright—less ideal for optimal horizontal trim.
    • Less modular—difficult to customize or upgrade individual components.
    • Side buoyancy bladders can feel constricting around chest and abdomen.

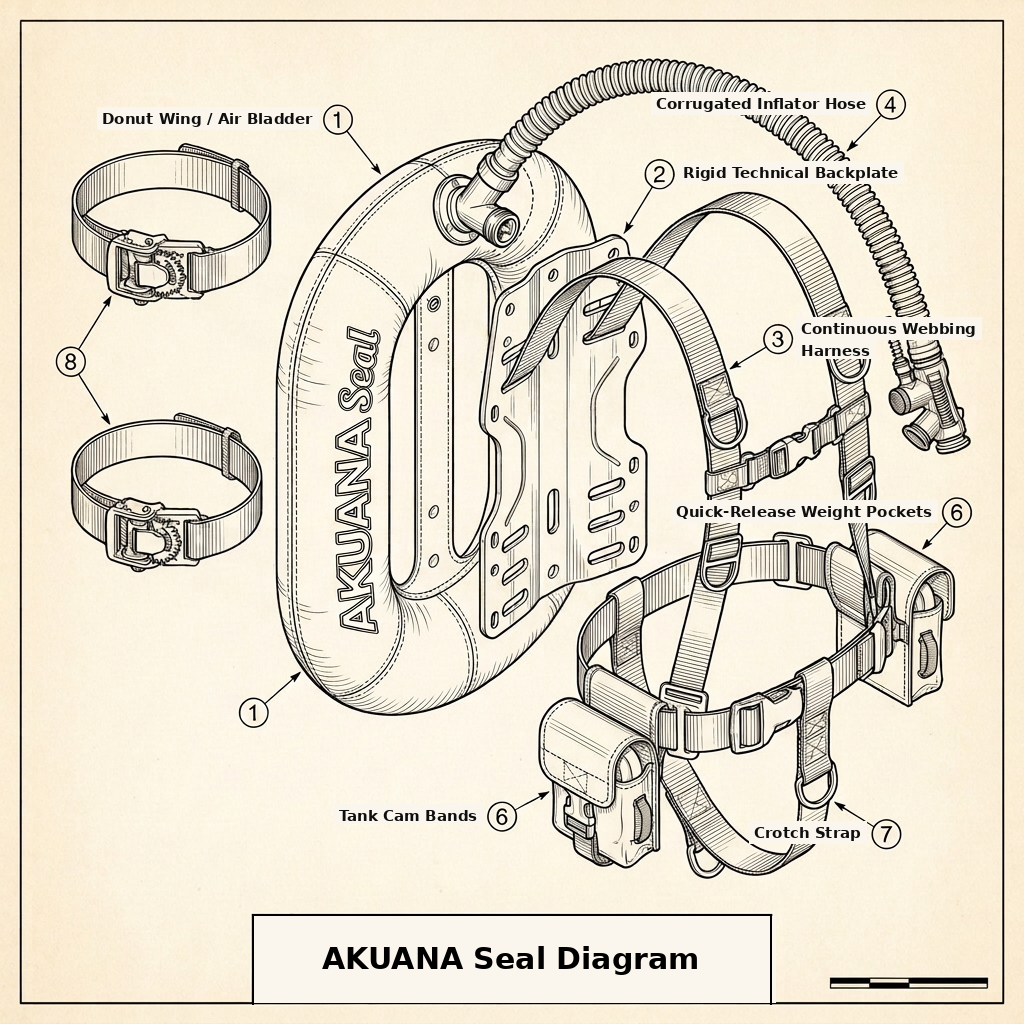

איור מבט פיצוץ מפורט למאזן AKUANA Seal וכנף כולל כותרות באנגלית

What is a Backplate & Wing System?

A backplate & wing system consists of three distinct components: a rigid backplate (metal or carbon fiber), a continuous webbing harness, and a rear buoyancy wing mounted behind the cylinder.

All the buoyant volume is concentrated behind you, leaving your chest and waist completely clear and unencumbered for maximum streamlining and comfort.

Weight Distribution: The Power of the Plate

  • Stainless Steel Plate

    Weighs ~2.3 kg. Provides built-in ballast on your back—reduces waist weight and stabilizes trim near your center of gravity.

  • Aluminum Plate

    Weighs ~800g. The classic versatile balance—lighter than steel and great for all-around recreational diving.

  • Carbon Fiber Plate

    Ultra-lightweight at ~300g. The ultimate choice for flying and traveling divers, offering total control over separate ballast.

  • Advantages of Backplate & Wing:

    • Effortless, natural horizontal trim.
    • Complete freedom of movement for arms and chest.
    • Total modularity—swap wings, plates, or harnesses anytime.
    • Flexible weight distribution directly on the plate.
    • High durability and simplified field maintenance.

  • Disadvantages of Backplate & Wing:

    • Requires an initial adaptation period to the rear buoyancy center.
    • Less "snug vest" feel for those used to jacket BCDs.
    • Higher initial investment in premium technical systems.

AKUANA Seal: Backplate Done Right

AKUANA specializes in modular dive systems for recreational and technical divers alike. The AKUANA Seal series elevates the backplate experience with game-changing features:

  • Patented Slot Weighting System: Integrated slots on the backplate allow mounting trim weight pockets directly on the plate, perfectly balancing heavy tanks without overloading waist belts.
  • Fully Adjustable Harness: Custom fit to any body type with zero clutter on the chest.
  • 360 Donut Wing: Fast, even air migration in 25, 30, or 50 lbs lift capacities.
  • 1000D Cordura Exterior: Built for maximum abrasion resistance with a 5-year warranty and CE certification.

Which BCD is Right For You?

  • Casual & Entry Divers


    If you dive occasionally on vacation and prefer simplicity with a snug fit—a jacket BCD gets the job done.

  • Travelers & Explorers


    If you travel frequently by air, a lightweight carbon or aluminum backplate cuts gear weight dramatically.

  • Custom Fit & Tech


    If you want a system that adapts to your body, perfects horizontal trim, and grows with you—backplate is the clear choice.

Try Before You Decide

Herodiver offers professional guidance and test-dive rentals for backplate systems at three locations across Israel:

  • Stella Maris Club – Bat Galim, Haifa
  • Lee-Yam Club – Mikhmoret
  • Marina Divers Club – Eilat

Ready to dive with a system customized for you? Explore our full selection of AKUANA BCDs in our store.

The author is a sea lover with 18 years of diving experience, a mechanical engineer, certified diving instructor in Israel and abroad, and founder of HERODIVER.
